12 Inches Cutter Suction Dredger For Sand Dredging In RiverPortLand Reclamation
I. What are the advantages of this kind of cutter suction dredger?
1. This cutter suction dredger is controlled by a full hydraulic system, which is easy to operate, and the dredger requires an operator to operate
2. Install anchor rods to facilitate anchoring at the construction site
3. Modular design, easy to assemble and disassemble
4. Can be transported by road, rail and sea
2. About Leader Dredger Cutter Suction Dredger
Leader Dredger Co., Ltd, is a manufacturer of cutter suction dredger that integrates design, development, production and export.
There are branches in Asia, Russia, Middle East and Africa countries to ensure that our after-sales service can respond quickly.
Leader Dredger has in-depth cooperation with a number of China Design and Research Institutes and will not update our cutter suction dredger to ensure that dredgers are always equipped with the latest equipment.
4. LEADER DREDGER LD1200IP TECHNICAL SPECIFICATIONS
Dredging Features |
| Standard dredging depth(m) Maximum mixture | 12m |
| capacity(m/h) | 1200m³/h |
| Solid capacity(approx) | 240m³/h |
| Dredging pump mode | 350/300mm |
| | |
Principal characteristics |
| Overall length(m) | 28m |
| Breadth(m) | 6.8m |
| Draught(m) | 1.3m |
| Discharge distance(m) | 700m |
| Total dry weight approx(MT) | 120MT |
| Ladder length | 16m |
| | |
Dredge pump: Australia technology Pump |
| By alloy cast iron material for better abrasion resistance, abrasive, hardness, more than68HRC. Bigger working capacity, more efficiency, driven through gearbox. |
| Maximum mixture capacity(m/h) | 1200m³/h |
| Solid capacity(approx) | 240m³/h |
| | |
Engine |
| Main diesel engine(Cummins) | 448kw(600hp) supply power for dredge pump |
| Total fuel consumption | ≤89kg/hr |
| Extra emergency generator set | 22kw(30Hp) |
5. Features:
| Easy to assemble and dismantle | Advanced profssional design |
| Deliver by road, rail or sea | Spare parts available |
| One man operation | Completely tested before deliverie |
| Advanced hydraulic system | with air conditioning |
| Water cooled diesel engines | Customizations on users'demand |
6. Hydraulic System: German Brand Hydraulic Parts:
To drive: 1 cutter header, 1 ladder winch, 2 side winches,2 spud rams, 2 hydraulic pumps, and a lot of hydraulic valves The extra emergency pump can drive all hydraulic parts using the extra emergency generator set.
7. Electric System:
European-brand electricsystem Very guaranteed the quality and operation of the whole dredger for long time
Equipped with an extra 30kw emergency generator set for emergency power supply
8. Include:
All necessary tools for connecting or disconnecting the
pontoons, and for the maintenance of the dredge pump and all
engines
Toile
Fire fighting apparatus
Life buoy and jackets
Accommodation room
10. Production time:
Operators cabin and living room
Available in stock, or 120-160 working days if not available.
11. Cutter Suction Dredger Parts
12. Leader Dredger Customer
13. Packing & Delivery

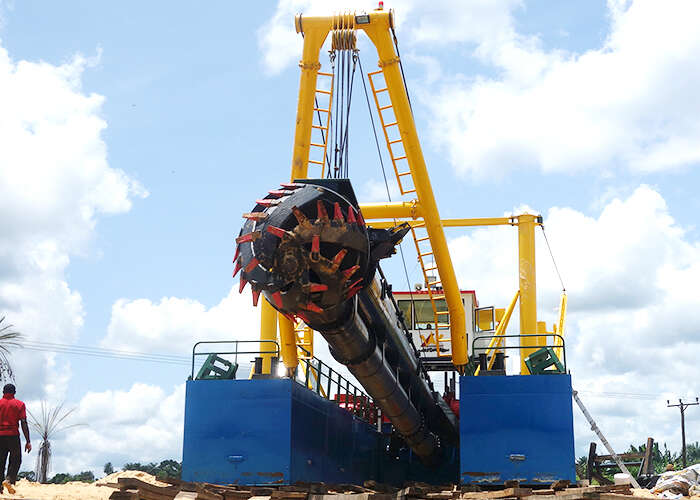

14. Cutter Suction Dredger Picture
